Wireline O-Ring and Redress Kits with Specified Hardness and Custom Labels

Wireline Kit Labels: Identify Compound and Hardness by Part Number

A custom label helps identify the intended replacement kit when several tool versions or hardness grades are handled together. Keep the label information linked to the approved component schedule, rather than selecting seals only by colour or kit photograph.

The listed tool and component references are enquiry references. Confirm exact fit and availability before ordering. A redress kit does not establish an independent pressure rating, sour-gas qualification or service approval for the complete tool.

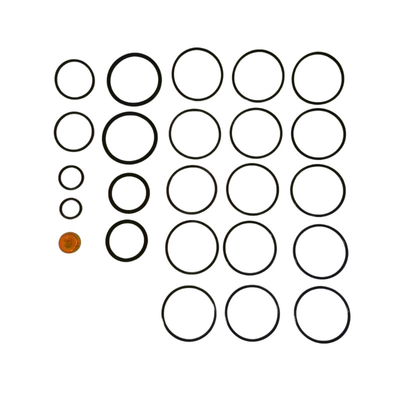

Wireline o rings and Kits

Shanghai Qinuo supplies wireline seal kit enquiries against the identified tool and approved parts list. Specify the NBR, HNBR or FKM compound grade, operating temperature and hardness for each seal; low- or high-temperature suitability depends on the selected grade and service conditions.

Specify O-ring hardness in Shore A with the target tolerance and compound code.

=>Customization is also available for customers that require non-standard compounds, additional or customer specific metal or other non-rubber parts.

Custom labels can identify the kit code, tool reference, drawing revision, compound and hardness; agree the required fields before packing.

Wireline kit references — confirm tool revision, contents and availability:

• #10 setting tool - With burst disk

• #20 setting tool - With burst disk

• AP Compact Setting Tool Kit

• Grease Tubes Seal Kit

• 3 1/2” Shorty Kits

• 3 - 1/8" Weight Bar Kit

• #10 Baker Firing Head Kit

• #20 Firing Head Kit

• #20 BP3.SEC kits

• #10 BP3.SEC kits

• T-BRT redress kit

• T-1 Set

• GC Stripper Head Redress Kits

Note: Confirm whether the specified kit includes a bleeder disc. Any disc must follow the original tool part specification; no pressure-relief setting is established by this kit listing.

Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut  (application:5" port plug)

6) Threaded Brass Plug  (application: setting tool plug )

SHQN Other relevant products

Oilfield Plug Valve Seals products data sheet

Hammer union seals:

Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage.

Available size : 1", 2", 3", 4" and 5"

Related hammer union seal enquiries include NBR, HNBR, FKM or PTFE with backing construction matched to the union drawing. HNBR alone does not establish sour-gas suitability; confirm the exact compound and qualification for the fluid, temperature and gas conditions.

Swab cups:

Related swab cups are ordered separately from the wireline O-ring and redress kit references above. During fluid recovery, the selected cup seals against the tubing or casing bore. Specify the cup profile, tubing inside diameter, mandrel bore, core arrangement and compound for the actual fluid exposure and permitted fluid-column load. Confirm cup and mandrel operating limits and identify the selected configuration on its own order line.

MV Style, TA style, TUF style, NUF style and V styles.

Rubber o rings or kits

For related AS568 O-rings, specify the dash number, compound and hardness; confirm tooling and availability for the requested size.

Color, hardness, packing all can be custom making.

Other oil field rubber and plastic fittings:

Rubber packer elements

Thread protectors

Flow tubes

Other parts by drawing.

Shanghai Qinuo Industry Co. Ltd

Shanghai Qinuo Industry Co. Ltd supplies rubber, plastic and machined parts to agreed drawings. Our ISO 9001 quality management supports specification review and inspection. For wireline kits, agree the tool reference, parts list, compound and hardness, label fields and acceptance criteria with the order.
